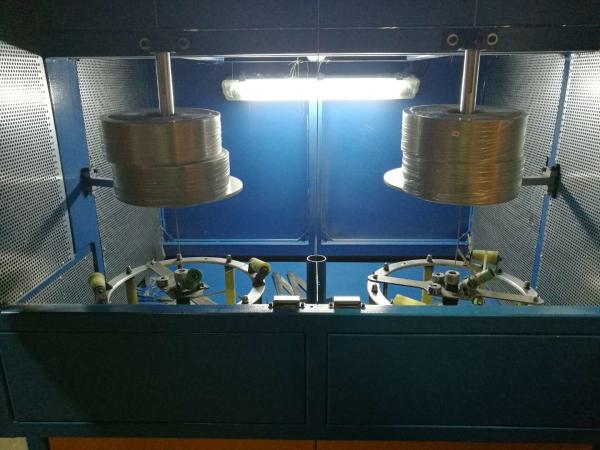

Concentric Type Armored Cable Taping Machine / Equipment

Specification:

Application:

Applied to tape horizontally for copper wire, insulation wire and twisted-cable. The tapping material is mica tape, aluminum foil, fireproof tape, PET foil, etc.

Feature:

• The tape could be used continuously. The machine could store 10 times the quantity of the tape as the old type.
• Universally applicable: used for twisted wire and parallel wire double/single layer continuously centering wrapping.
• High output: high rotate speed,work rate is 2.5 times than traditional type.
• Steady tension control: Automatic tension trace instrument,taping tension keep constant from start to end. Needn't any artificial adjustment.
• Wrapping distance accurate: Setting pitch on touch screen, controlled by PLC, wrapping point is steady while it's normal work or accelerate and decelerate.
• Good traversing: Take-up traversing adopted axis-row type structure,spacing can be set arbitrary.
• High quality: Used for making HDMI,DP,ATA,STAT and such high frequency wire, pass rate 100%.

Product Description

A concentric type armored cable taping machine or equipment is specifically designed for the taping process of concentrically armored cables. Concentric armor refers to a configuration where multiple layers of metallic tapes or wires are applied around the core of the cable in a concentric manner. The taping process provides mechanical protection and shielding to the cable.

Here are some key features and capabilities of a concentric type armored cable taping machine:

1. Taping Head: The machine is equipped with a taping head that applies the metallic tapes or wires around the core of the cable in a concentric pattern. The taping head is adjustable and can accommodate different tape or wire widths and thicknesses.

2. Layer Control: The machine allows for precise control over the number of tape or wire layers and their positioning around the cable core. This ensures the desired level of mechanical protection and shielding is achieved.

3. Tension Control: The machine has mechanisms to control the tension of the tape or wire during the taping process. This ensures consistent and uniform taping results.

4. Material Compatibility: The machine is designed to work with various types of metallic tapes or wires commonly used in concentric armor cables, such as steel tapes or wires.

5. Speed Control: The machine offers adjustable speed control to accommodate different production requirements and types of cables.

6. PLC Control Panel: The machine is equipped with a programmable logic controller (PLC) control panel for easy operation, parameter adjustment, and monitoring of the taping process.

7. Take-Up System: The machine may include a take-up system to collect and spool the armored cable after the taping process.

Main technical data
