Application and Feature:
Our double - twist strander can be employed for twisting multi -
strand bare copper, aluminum, and aluminum alloy wires, plus coated
cored wires like rubber wires, power wires, and control cables. Our
model has several main differences compared to others:
- It can reach a line speed of up to 140 meters per minute.
- A high - tech temperature control system, paired with a powerful
compressor, ensures non - stop working.
- The carbon - fibre bow part offers extra stiffness and is light.
- An intelligent communication module reduces the amount of circuits.
- The servo motor can save energy by as much as 15%.
Technical specification:
| Specs/Model | DTE-1250D | DTE-1600D | DTE-2000D |
| Inlet wire diameter(mm) | Ø1.0-3.0 | Ø1.5-4.8 | Ø1.5-4.8 |
| Stranded section (1+6+12)(mm2) | 3.5-70 | 16-240 | 16-240 |
| Stranded section (1+6)(mm2) | 3.5-50 | 16-50 | 16-50 |
| Bunching section (Cu)(mm2) | 3.5-50 | 16-150 | 16-240 |
| Bunching section (Al)(mm2) | 3.5-70 | 16-240 | 16-300 |
| Max.stranded diameter(mm) | Ø10 | Ø25 | Ø35 |
| Max. Compression ratio | 85-90% | 85-90% | 85-90% |
| Max. Line speed (m/min) | 70-150 | 170-200 | 170-200 |
| Rotation speed (rpm) | 800/max. | 500/max. | 350/max. |
| Pitch (mm) | 40-350 | 50-600 | 60-600 |
Production line composition:
Standard configuration includes:
1. Pay-off stand (normally 7-head up to 19-head)
2. Tension stand
3. Rotary wire assembly rack (where wires come together and form
one strand)
4. Stranding host (which holds the take-up bobbin and where the
actual rotation happens)
Terms and conditions:
- Price terms: FoB, C&F or CIF
- Production period: 60-90 days
- Warranty: 1 year except for man-made damages
Support and Services:
The Double Twist Stranding Machine is a high-performance piece of
equipment designed to provide efficient stranding of wires and
cables. Our product technical support and services include:
- Installation and commissioning of the machin
- Training for operators and maintenance personnel
- Regular maintenance and repair services
- Supply of spare parts and components
- Technical troubleshooting and problem-solving
- Upgrades and customization services
- 24/7 customer support and assistance
Our team of experienced engineers and technicians is committed to
providing you with the best possible support and services to ensure
your Double Twist Stranding Machine operates at peak performance
levels and meets your production needs.

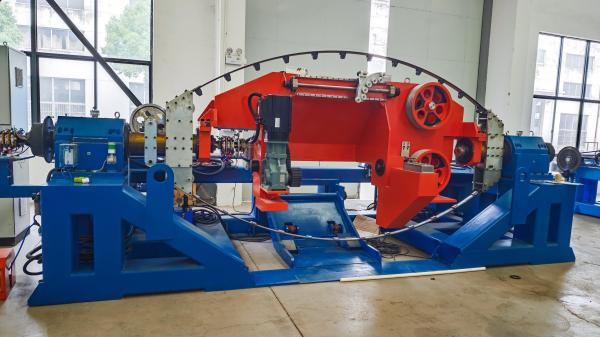

More Images:
