1250mm 1+3 PLC Bow Twister Machine For Cellphone Wire Untwist

Ask Lasest Price
Brand Name :	Hopda
Model Number :	1250, 1+5
Certification :	ISO,CE
Price :	negotiable
Payment Terms :	T/T,L/C
Supply Ability :	5 set per month
Delivery Time :	if no stock in place, 30-60 calendar days

Add to Cart

Product Details
Company Profile

1250mm 1+3 PLC Bow Twister Machine For Cellphone Wire Untwist

Description and application:

Compared to the traditional cradles type cabling machine, our bow type laying up machine shows higher productivity. It is applicable to the stranding of soft structure cables such as control cables, ACSR overhead cables, power cables, as well as bare copper, aluminum, and aluminum alloy wires with a maximum of 7 cores. You can choose to have the back -twist function according to your needs. The drive system of the machine can be either independent or ground shaft - based.

Features:

The user - friendly human - machine interface allows for easy operation and all - around monitoring.
Automatic pitch adjustment is achieved through the use of PLC.
A back - twist mode with a maximum of 100% can be installed.
There are options of independent drive and ground shaft drive.
AC induction servo motors ensure reliable and energy - saving operation.

Specification:

Payoff bobbin(mm)	Max. rotation speed (r/min)				Single wire diameter (mm)		Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Payoff bobbin(mm)	3B	4B	5B	6B	Soft conductor	Hard conductor	Pitch (mm)	Max. OD(mm)	Power(KW)	Caterpillar(kg)	Take-up	Central height(mm)	Length * width(m)
Ø1000	430	400	370	350	Ø8～Ø15	Ø3.0～Ø6.0	90-1400	45	37	1600	PN1600	1000	50×6
Ø1250	330	288	270	250	Ø8～Ø15	Ø3.0～Ø6.0	48-1500	60	55	2000	PN2000	1000	55×6
Ø1600	250	220	200	180	Ø10～Ø20	Ø3.5～Ø8.0	60-1500	70	90	2000	PN2500	1000	60×7

Main components:

Central pay-off stand
Wire guiding stand
Stranding host
Filer payoff stand (Optional)
Assembling die holder
Central taping machine
Armouring machine
Meter counter
Capstan/Hual-off/Caterpillar
Take up with traversing
Control system
Transmission system
Wearing parts

Product images:

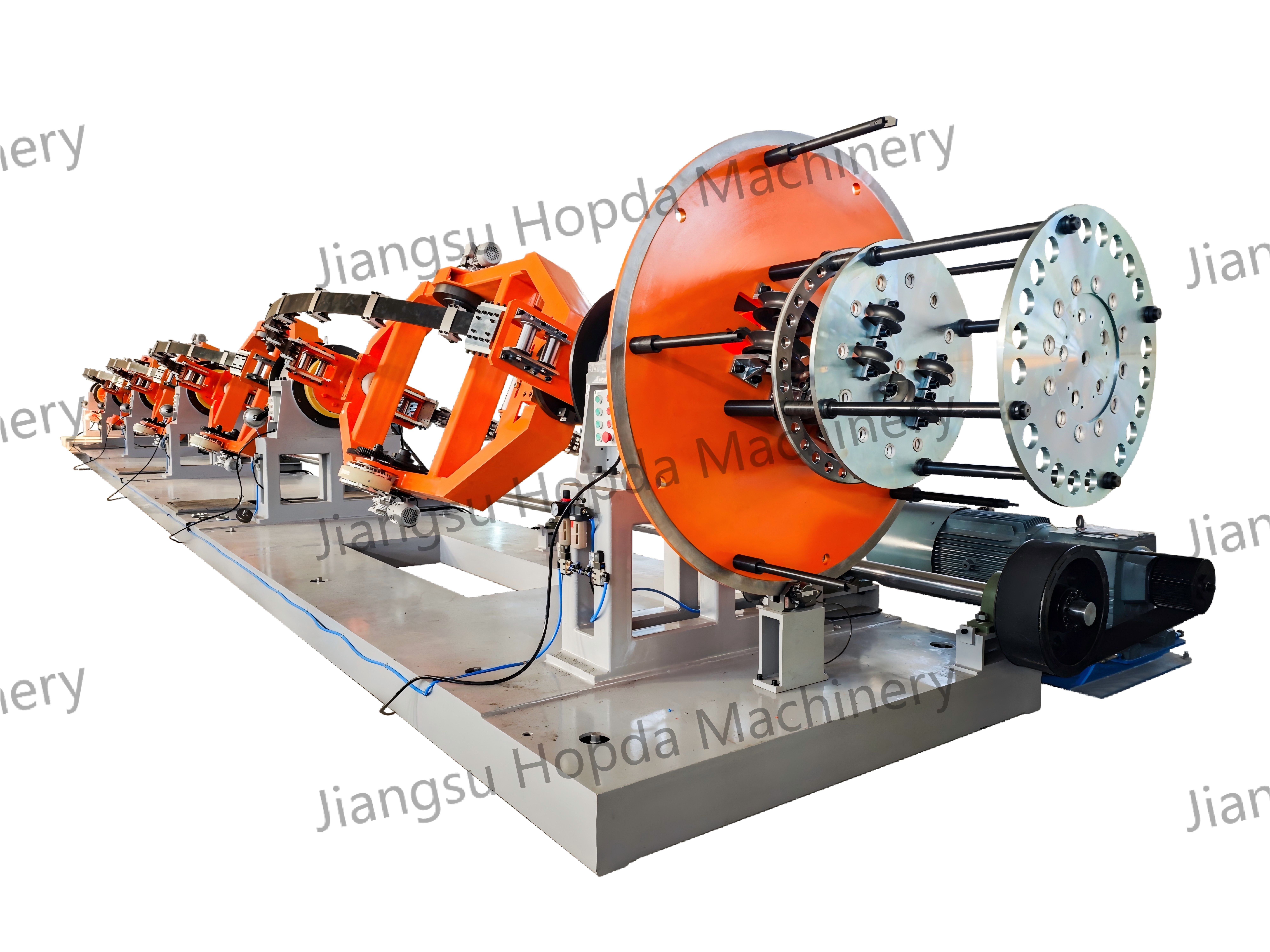

1250mm 1+3 PLC Bow Twister Machine For Cellphone Wire Untwist
