80mm cable extrusion line for Cu, Al wire insulation and sheathing

Ask Lasest Price
Brand Name :	Hopda
Model Number :	80-25D
Certification :	ce.ul
Price :	negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10 sets per month
Delivery Time :	60-90days

Add to Cart

Product Details
Company Profile

80mm cable extrusion line for Cu, Al wire insulation and sheathing

Product Description:

We proudly announce our high-efficiency cable extrusion lines for insulating and sheathing bare wires of copper, aluminum, and aluminum alloy, with the application of PVC, PE, LSZH, HFFR, and XLPE materials.

Features:

Can be configured with additional extruders for co-extrusion or applying multiple colours on insulation layer
PLC control and user-friendly touch screen interface.
Precise fixed-center crosshead for minimal need for adjustment.
The productioin line adopts various detecting devices such as precision meter counter, lazer diameter gauge and spark tester to guarantee the consistency in product quality.

Technical Parameters:

Model/specs	35-25D	45-25D	50-25D	65-25D	70-25D	80-25D	90-25D	100-25D	120-25D	150-25D	200-25D
Screw diameter (mm)	Ø35	Ø45	Ø50	Ø60	Ø70	Ø80	Ø90	Ø100	Ø120	Ø150	Ø200
L/D ratio	18:1	25:1
Standard PVC(kg/h)	21	56	70	120	140	205	280	360	520	800	1120
Boosted productivity PVC(kg/h)	30	80	100	175	200	290	400	520	750	1150	1600
Standard LSZH(kg/h)	25	70	90	155	180	260	360	470	675	1050	1450
Boosted productivity LSZH(kg/h)	30	85	110	190	220	315	435	565	810	1260	1740
HFFR(kg/h)	20	65	80	140	160	230	320	420	600	900	1300
Power (Kw)	15	15-22	18-30	30-45	37-55	55-75	90-110	110-132	160-185	185-250	280-355
Outlet wire diameter (mm)	0.2-1.0	0.5-3.0	0.8-5.0	1.5-8.0	5-25	16-35	16-50	20-80	30-80	40-140	50-200

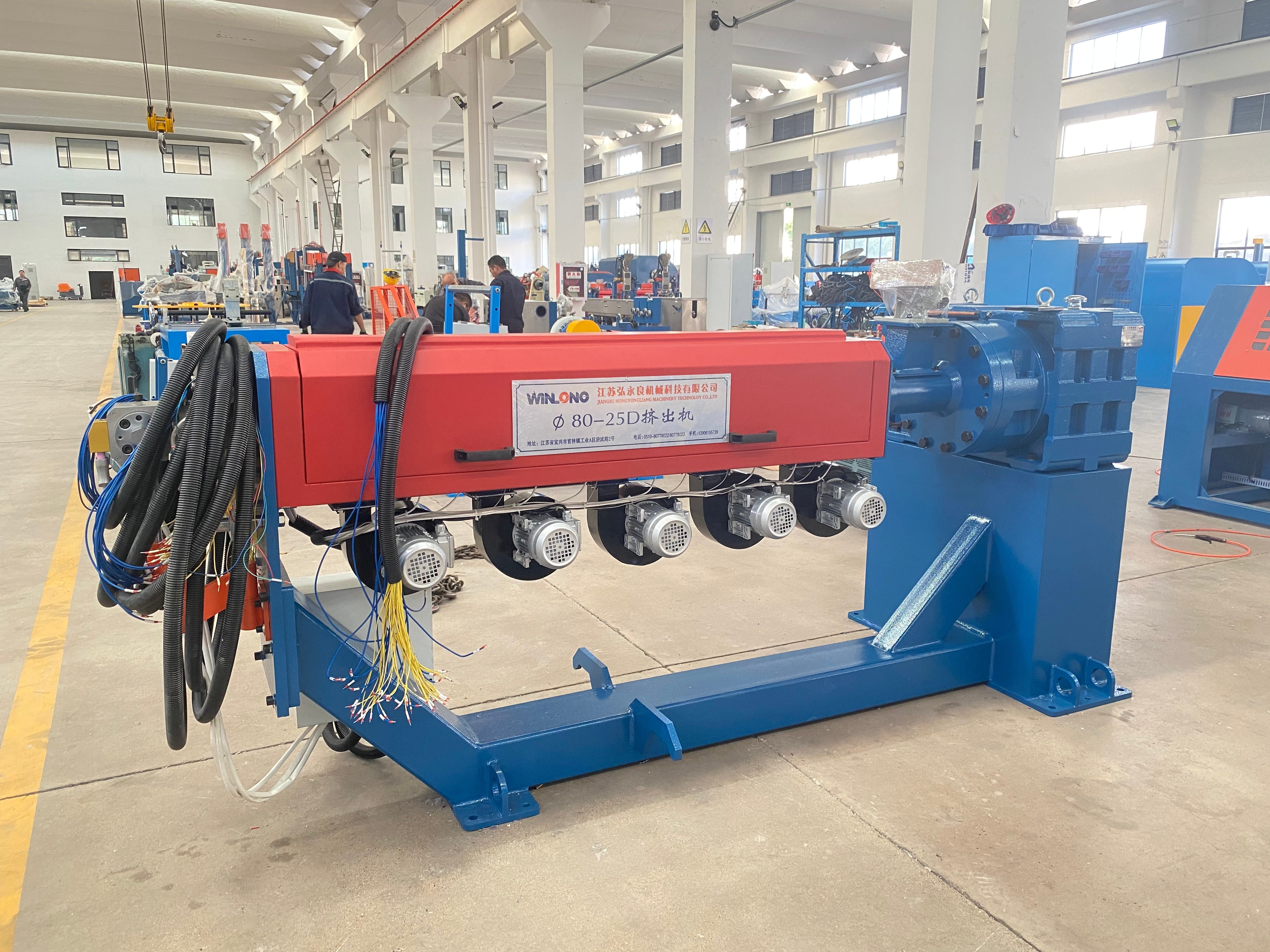

Product images:

80mm cable extrusion line for Cu, Al wire insulation and sheathing
